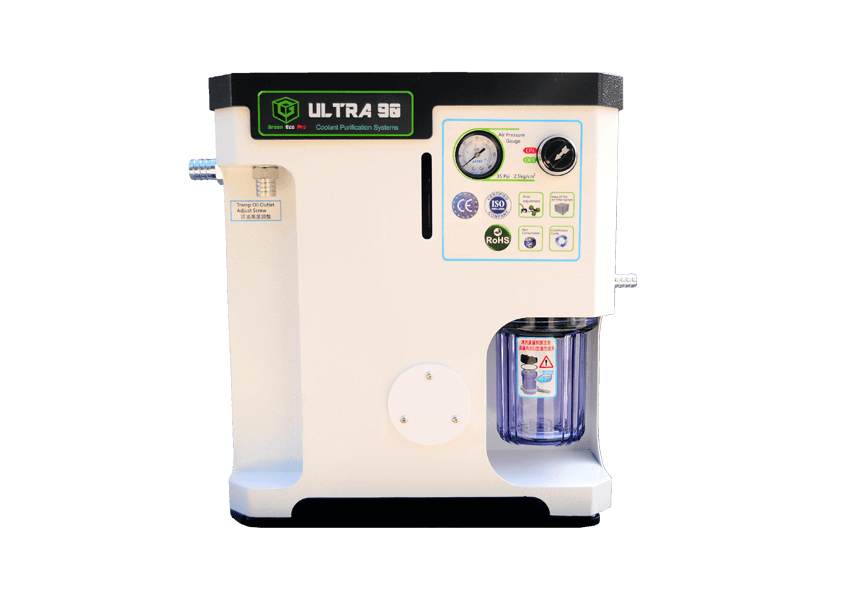

Coolant Purification Systems Ultra 90

Модель №.
Coolant Purification Systems Ultra 90
Сделано в
Тайвань , Китайская республика
Запрос о стоимости


    Coolant Purification Systems Ultra 90

    Ключевые особенности

    Coolant Purification Systems

    Ultra 90
    Keep coolant concentration on basic, To reduce floating oil on surface and prevent anaerobic bacteria and acidization of coolant. Solve the foul smell、Keep stable PH value、Save cost.
    • Small volume
    • Easy integration for CNC
    • Standard Mini for configuration
    • Lower 50% of the cost, Extend life time for quintuple
    • Lower 15% of the cost, Lessen waste to promote high purification
    • Lower 15% of the cost, Increase Value of out-put
    • Higher 10% of Waste Oil Recycle, Promote Recycle Value





     Catalog  Inquiry

    Features

    Reduce cost of coolant
    Lower 50% of the cost, Extend life time for quintuple
    Recycle waste oil
    Filter the waste oil and saving cost 15%
    Automatic processing
    Operator’s health is priceless and cost down 15% manual work
    Pure Oil Recycle
    Increase Pure Oil Recycle 10%,promote high value

    Specification

    ItemUltra90 coolant purification machine
    Size310*390*430 (L*W*H/mm)
    Max Flow90 L / Hr
    Volume10 L
    Net Weight25 kg
    Oil VolumeNo
    Filter Obstruct MeterOptional
    PowerAir Pump Minimum Start Pressure 1.6 BAR

    Tiny Accessory

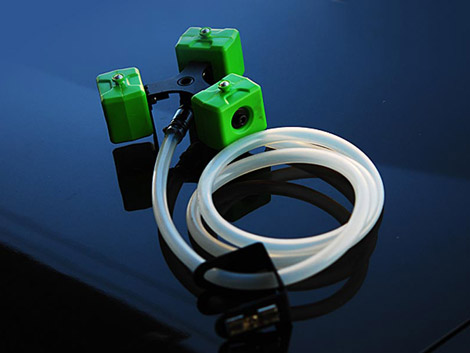

    Floating skimmer
    The waste oil cover on surface and it leads to birth of anaerobic bacteria.The basic oil of coolant is the most important source of nutrition by anaerobic bacteria and will be produced a lot.That is a reason of foul smell.
    The patent design oil and water separate device are able to absorb surface of oil. Small compact and patent design tube can be balance. The special designed patented oil skimmer can be functional only in lower water of 5 cm.

    High Efficacy Purification Module

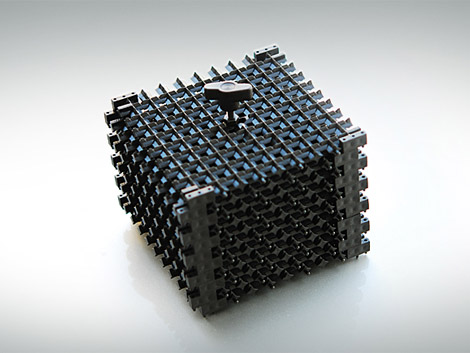

    S.T.P.M module
    The patented design with non-lipophilic substances mixed in the material, one injection molding,prompting the oil molecules to achieve continuous and rapid separation, and speed up the settlement of suspended
